Bolt in Competition Roll CageĀ
Our Competition Bolt-In Roll Cages are built to comply with MSUK standards and follow MSUK Appendix K design principles. Each cage is manufactured to sit snugly within the vehicle interior, improving chassis rigidity while maintaining cabin space and functionality.

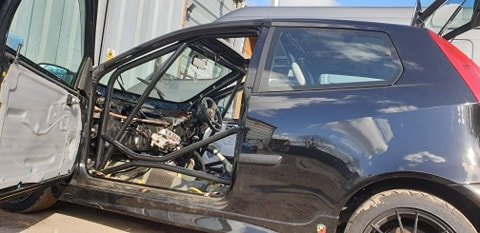

The door bars are designed to allow easy access while still offering full lateral occupant protection. By positioning the bends lower and slightly forward of the seat, the driver and passenger can enter and exit the vehicle efficiently in emergencies, without compromising safety.
These cages are suitable for most UK-regulated motorsport events.
Buyer responsibility: Regulations may vary between championships and classes – it is the customerās responsibility to ensure the chosen specification meets the requirements of their specific event.
ā Design & Appearance – Bolt-In with a Weld-In Look
JP Cages design their bolt-in systems to offer the aesthetic and structural quality of a weld-in cage:
-
Door bars are welded directly to the front (A-pillar) legs, creating a seamless appearance from the side
-
No traditional X-joint style door bars – we use continuous one-piece door bar sections to avoid placing welds or joints in direct impact zones
-
Snug, tight-fitting tube work that follows the bodyline of the car

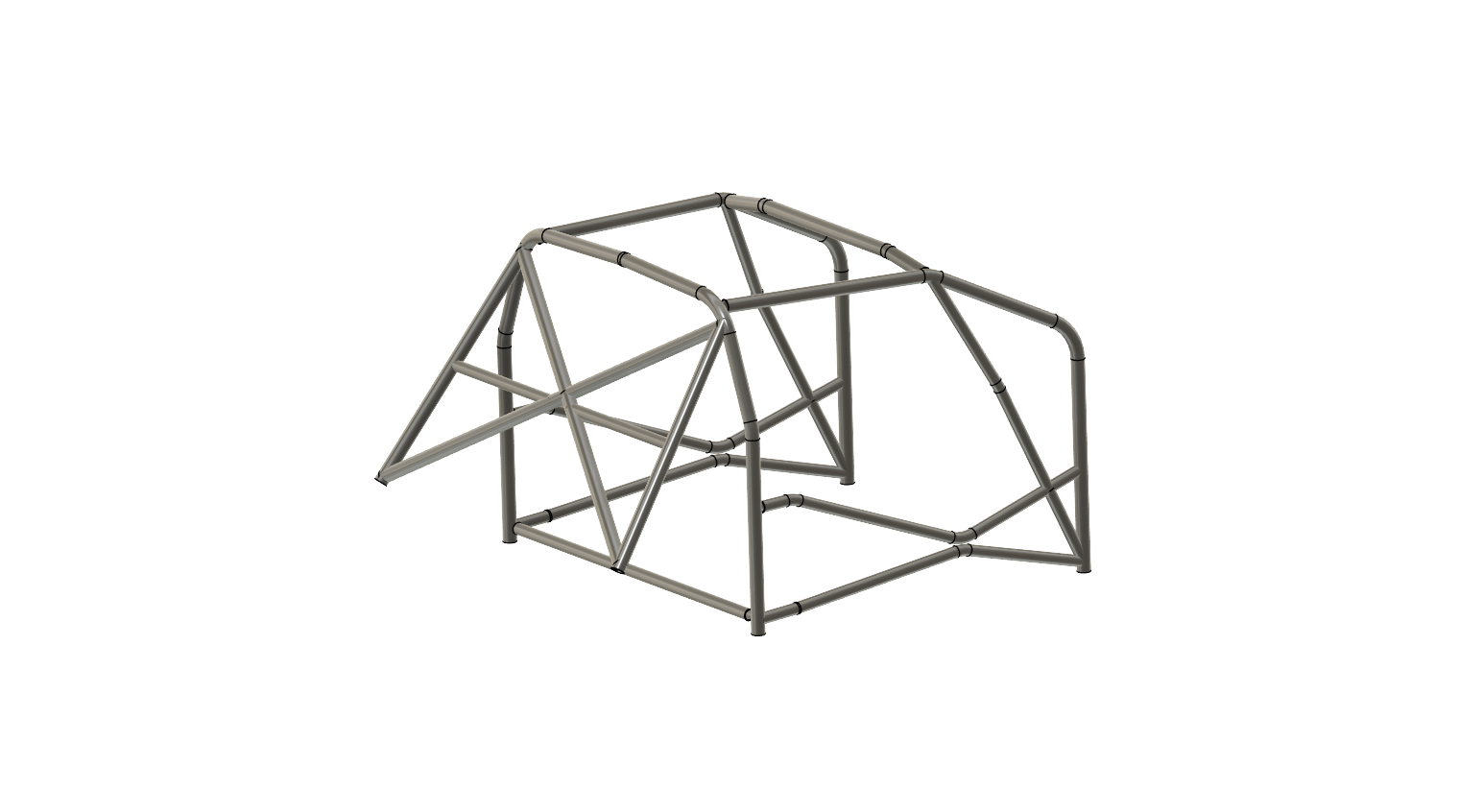

Supplied in 3 or 4 Main Sections
| Section | Description |
|---|---|
| Rear Half Cage | Main hoop, rear stays and bracing |
| Left A-Pillar Assembly | A-pillar leg with door bars pre-welded |
| Right A-Pillar Assembly | A-pillar leg with door bars pre-welded |
| Roof Bar(s) | Single, Diagonal or Roof X (spec dependent) |
| Centre Brace | Included from JPC3 and above, unless replaced by an X-centre configuration |
The cages come ready to assemble, with the required fixings and mounts included, designed to be welded in place during installation.
JPC Specification Options
| Spec | Rear / Centre Bracing | Door Bars | Harness Bars | A-Pillar Supports | Roof Bracing | Centre Brace | Gusseting |
|---|---|---|---|---|---|---|---|
| JPC1.5 | Single Rear Diagonal | Single | Yes | ā | ā | ā | ā |
| JPC2 | X Rear or X Centre | Single | Yes | ā | ā | ā | Yes |
| JPC3 | X Rear or X Centre | Double | Yes | ā | ā | Yes | Yes |
| JPC4 | X Rear or X Centre | Double | Yes | Yes | ā | Yes | Yes |
| JPC4.5 | X Rear or X Centre | Double | Yes | Yes | Roof Diagonal | Yes | Yes |
| JPC5 | X Rear or X Centre | Double | Yes | Yes | Full Roof X | Yes | Yes |
Finishes & Optional Upgrades
-
Supplied bare metal or powder-coated in a range of colours
-
Weld-in mounting plates and required hardware included in every kit
